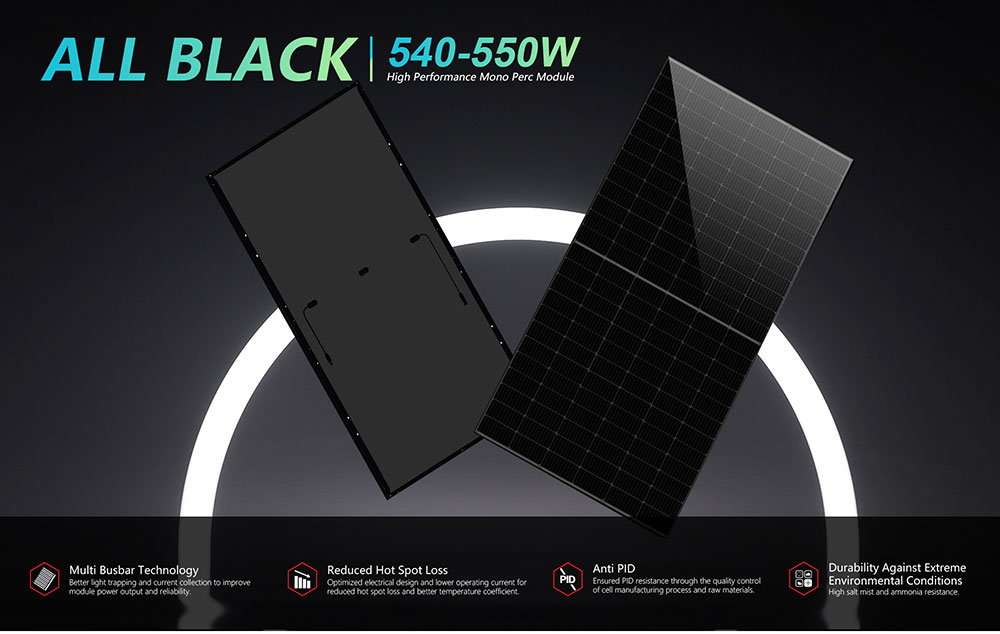

540W-550W All Black Design Half Cells Mono Solar Panel China Factory : 144 half cut solar cell MBB A grade PV Modules from Chinese manufactory.
Electrical Performance Parameters (STC Test)
| Model |
ASM 540W(BK) |
ASM 545W(BK) |
ASM 550W(BK) |
| Rated Maximum Power at STC | 540W | 545W | 550W |
| Open Circuit Voltage (Voc) | 49.8 | 50.0 | 50.2 |
| Maximum Power Voltage (Vmp) | 42.0 | 42.2 | 42.4 |
| Short Circuit Current (Isc) | 13.70 | 13.76 | 13.82 |
| Maximum Power Current (Imp) | 12.86 | 12.92 | 12.98 |
| PV Module Efficiency (%) | 20.9 | 21.1 | 21.29 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | ||

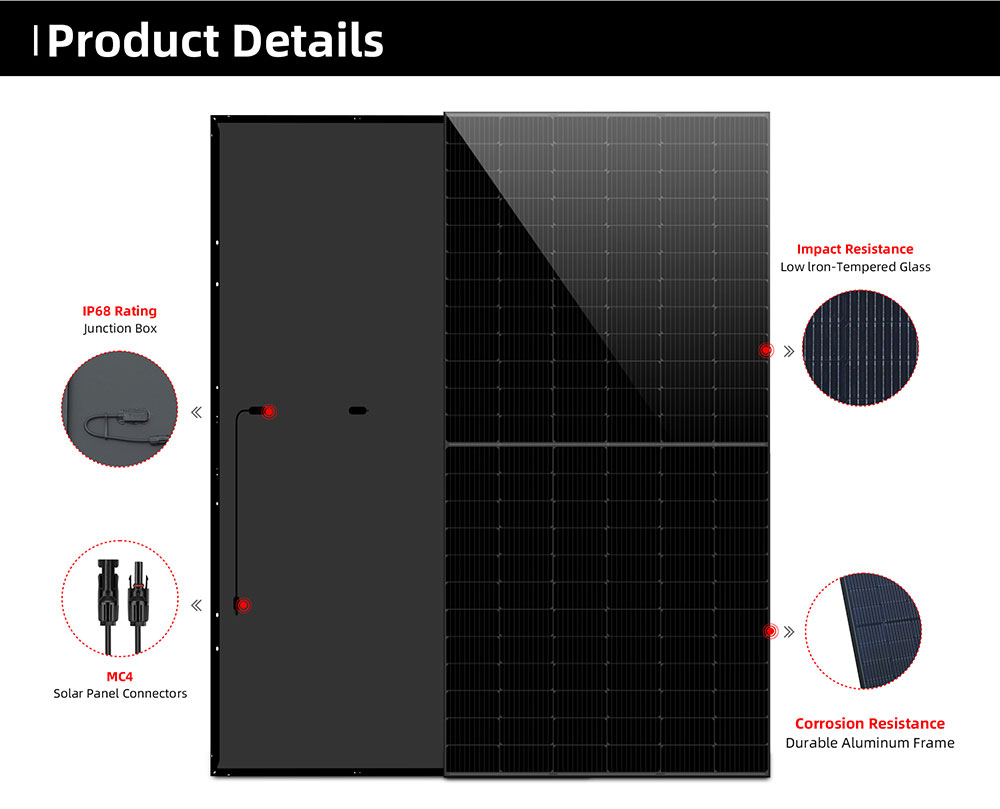

Mechanical Parameters
Layout : 144( 6 ×24）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 29.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)
PV Size: 2278×1134×35mm
Packaging: 31 pcs / pallet
620 pcs / 40HQ container
What kind of Solar Cells we have?
Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
What is the lead time?
Normally 15 working days after advance payment.
-
