Solar Panel 370W 375W 380 385W 390W 395W 120Cells MBB 166MM Half-cell High Efficiency Module

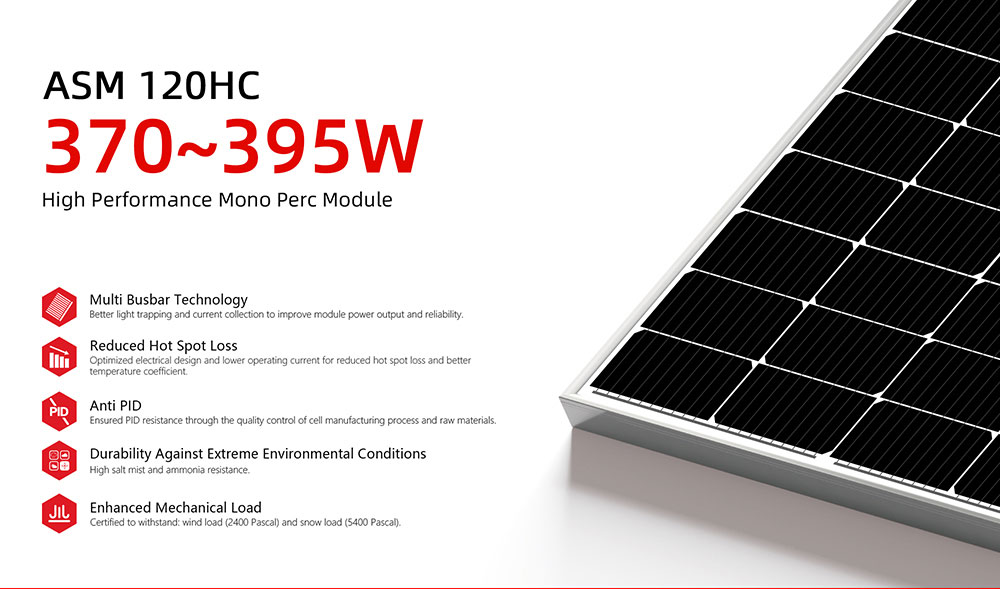

ASM 120HC 370-395W

Product Description:Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively.

  • Brand

    ALLSUN

  • Rated Maximum Power

    395W

  • Maximum Efficiency

    21.65%

  • Junction Box

    IP 68

  • Maximum System Voltage

    1000V/1500V DC

  • Operating Temperature

    -40℃ ~ +85℃

  • Connectors

    MC4 EVO2/QC4.10-35

Send Inquiry
Product Specifications
  • Product details
  • FAQS

370W-395W Half Cells Mono Solar Panel China Factory : 120 half cut 166MM solar cell MBB A grade PV Modules from Chinese manufactory.





Electrical Performance Parameters (STC Test)



Model ASM 370W ASM 375W ASM 380W ASM 385W ASM 390W ASM 395W
Rated Maximum Power at STC 370W 375W 380W 385W 390W 395W
Open Circuit Voltage (Voc) 41.3 41.45 41.62 41.78 41.94 42.1
Maximum Power Voltage (Vmp) 34.23 34.5 34.77 35.04 35.33 35.62
Short Circuit Current (Isc) 11.35 11.41 11.47 11.53 11.5 11.63
Maximum Power Current (Imp) 10.81 10.87 10.93 10.99 11.04 11.09
PV Module Efficiency (%) 20.28 20.55 20.83 21.10 21.38 21.65
Standard Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5





Mechanical Parameters



Solar Panel Half Cut



Layout :                  120( 6 × 20 ）





Junction Box :        Split junction box, IP68, 3 diodes





Weight:                   20.5KG





Cable Length :        300mm (+) / 300mm（-)





Cable  Size :            4mm²（IEC)





PV Size:                   1755×1038×35mm





Packaging:              31 pcs / pallet



858 pcs / 40HQ container

  • What kind of Solar Cells we have?

    Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.

  • How is your technical support?

    We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.

  • What is the warranty period, how many years?

    12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.

  • What is the lead time?

    Normally 15 working days after advance payment.
