Solar Panel 650W 660W 670W 132Cells 12BB 210MM Half-cell High Efficiency Module Chinese Factory

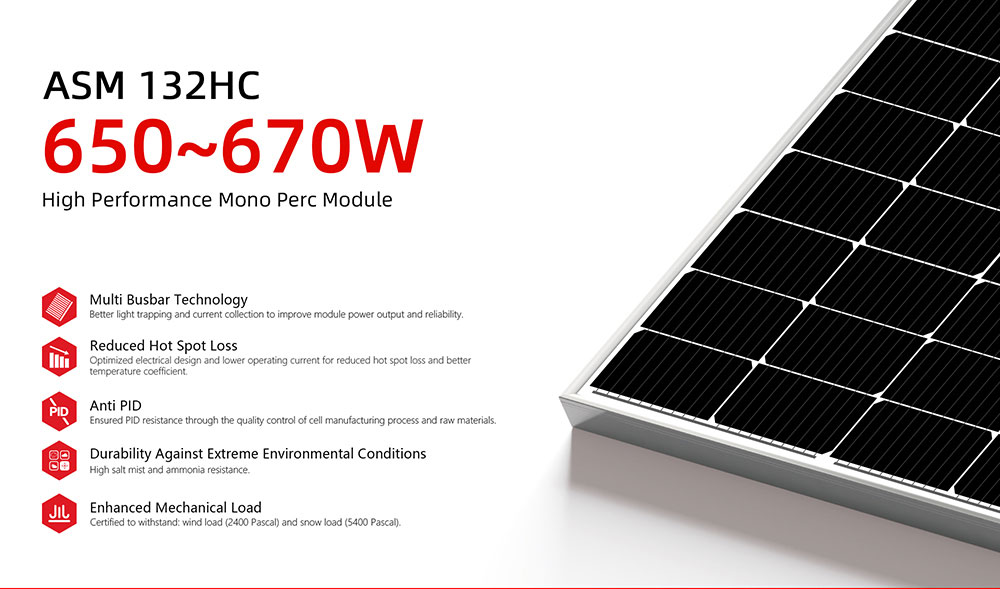

ASM 132HC 650-670W

Product Description:Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively.

  • Brand

    ALLSUN

  • Rated Maximum Power

    670W

  • Maximum Efficiency

    21.57%

  • Junction Box

    IP 68

  • Maximum System Voltage

    1000V/1500V DC

  • Operating Temperature

    -40℃ ~ +85℃

  • Connectors

    MC4 EVO2/QC4.10-35

Send Inquiry
Product Specifications

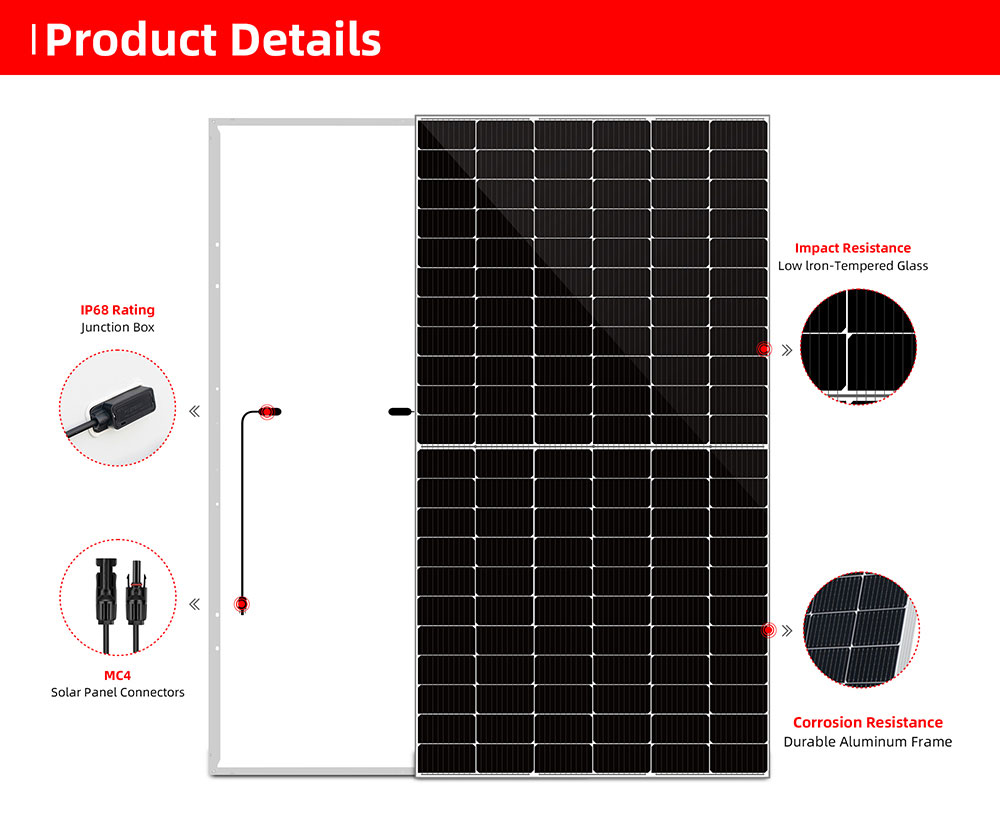

  • Product details
  • FAQS

650W-670W Half Cells Mono Solar Panel China Factory : 132 half cut 210MM solar cell MBB A grade PV Modules from Chinese manufactory.







Electrical Performance Parameters (STC Test)



Model ASM 650W ASM 655W ASM 660W ASM 665W ASM 670W
Rated Maximum Power at STC 650W 655W 660W 665W 670W
Open Circuit Voltage (Voc) 45.2 45.4 45.6 45.8 46.0
Maximum Power Voltage (Vmp) 37.5 37.7 37.9 38.1 38.3
Short Circuit Current (Isc) 18.35 18.39 18.44 18.48 18.51
Maximum Power Current (Imp) 17.34 17.38 17.42 17.46 17.5
PV Module Efficiency (%) 20.92 21.09 21.25 21.41 21.57
Standard Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5



Mechanical Parameters



Solar Panel Half Cut



Layout :                  132( 6 × 22 ）





Junction Box :        Split junction box, IP68, 3 diodes





Weight:                   34.5KG





Cable Length :        300mm (+) / 300mm（-)





Cable  Size :            4mm²（IEC)





PV Size:                   2384×1303×35mm





Packaging:              31 pcs / pallet



527 pcs / 40HQ container

  • What kind of Solar Cells we have?

    Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.

  • How is your technical support?

    We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.

  • What is the warranty period, how many years?

    12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.

  • What is the lead time?

    Normally 15 working days after advance payment.
